Orthogonalized vector space tutorial#

In this tutorial you will learn:

How to construct a vector space that is orthonormal in a custom inner product

#First, let's import the relavant modules:
import romtools
import numpy as np
from matplotlib import pyplot as plt
from romtools import vector_space

#Now, we will load in snapshots from a FOM. Here, we use pre-computed snapshots of the 1D Euler equations obtained using pressio-demo-apps
snapshots = np.load('snapshots.npz')['snapshots']

## The snapshots are in tensor form:
n_vars, nx, nt = snapshots.shape
## Note that romtools works with tensor forms (https://pressio.github.io/rom-tools-and-workflows/romtools/vector_space.html)

# As an example, we want to create a basis that is orthonormal w.r.p. to the cell volumes.
# In this example, the cell volume was dx = 1/500
dx = 1./500

#We will create a vector the size of a single snapshot that we wish to orthogonalize against
w = np.ones(snapshots[...,0].size)*dx

#Now, we will create an orthogonalizer:
#(https://pressio.github.io/rom-tools-and-workflows/romtools/vector_space/utils/orthogonalizer.html)
my_orthogonalizer = vector_space.utils.EuclideanVectorWeightedL2Orthogonalizer(w)

#Like the last tuorial, let's create a truncater that controls for how we want to truncate our basis.
my_truncater = vector_space.utils.EnergyBasedTruncater(0.999)

#Now, let's construct a vector space using POD with our truncater and orthogonalizer
my_vector_space = vector_space.VectorSpaceFromPOD(snapshots,truncater=my_truncater,orthogonalizer=my_orthogonalizer)

##It's important to note that we do not do a deep copy of the snapshot matrix for performance reasons.
##Once you pass us the snapshot tensor, we will modify the data in place.

#We can view the basis and shift vector:
basis = my_vector_space.get_basis()
shift_vector = my_vector_space.get_shift_vector()

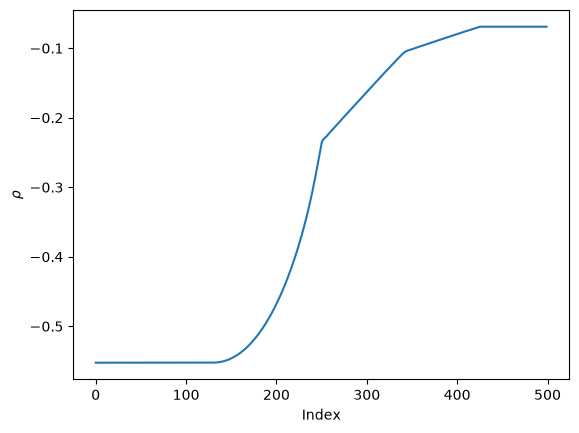

#We can look at the density component of the first basis:
plt.plot(basis[0,:,0])
plt.xlabel(r'Index')
plt.ylabel(r'$\rho$')
plt.show()

[False False False False False  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True  True  True  True  True  True  True  True  True
  True  True  True  True]

../../_images/da593cbb355cf07955eeac64b6c0d31989e229ad771d4a949eb7258857d6559c.png

# We can check that the basis is orthonormal in the desired inner product:
w = w.reshape(basis[...,0].shape)
is_identity = np.einsum('ijk,ij,ijl->kl',basis,w,basis)
assert(np.allclose(is_identity,np.eye(my_vector_space.extents()[-1])))
